GUI Documentation

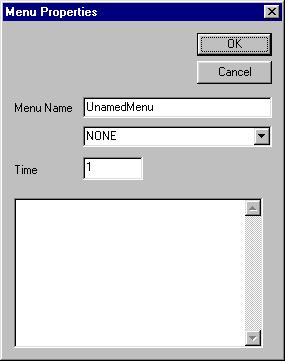

DlgEdit – This is the editor that allows you to create GUIs for the game.  Right click the on the window to bring up the Menu Properties dialog.  Here’s a description of the fields:



·         Menu Name: The name of the menu that you will reference it by in the game.

·         Motion Direction: This is the direction that the menu will appear from when toggled in the game.  Choices are NONE (Default), FROM_TOP, FROM_BOTTOM, FROM_LEFT, and FROM_RIGHT.

·         Time: This is the amount of time the menu takes to appear or disappear when toggled.

·         General Commands:  You can add any of the appropriate layout commands mentioned below.








·         Name - Internal name of the widget.  This really isn’t used much in the game and was added  (just in case we  need it).

·         Class - Defines the class of the widget (Button, Label, List, etc…).

·         Title – Title to be displayed for labels, buttons, etc..

·         Cmd – Stuff command to be put into the command buffer when the widget is activated (i.e. button is pressed).

·         Cvar – Name of the cvar to link this widget with.  If the value of the widget changes, then this cvar will be updated with the appropriate value.

·         Border – Style of the border of the widget.

·         BGColor – Background color of the widget.

·         BGAlpha – Background alpha of the widget.

·         FGColor – Foreground color of the widget.

·         FGAlpha – Foreground alpha of the widget.

·         Position – Position of the widget ( x,y,width,height).

·         Class specific attributes – Extra information that applies to the widget.  See the list of layout commands below.

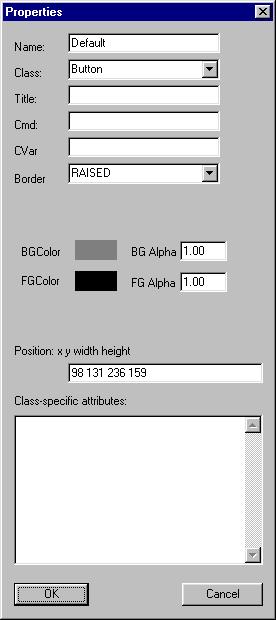

To create a widget, just click the LMB anywhere in the background and drag out a region.  This will define the frame of the widget.  Double click in the frame of that widget to bring up the Widget Properties Dialog.  Here’s a description of the fields:





















Layout commands

align <left> <right> <top> <bottom>

Aligns the widget to the specified directions (resolution independent)

shader <shadername>

Sets the shader of the widget.  This will be drawn stretched in the widget

tileshader <shadername>

Sets the shader of the widget.  This will be drawn tiled in the widget

hovershader <shadername>

Sets the shader that will be drawn when the mouse is hovering over the widget

additem <item>

Adds the specified item to a list or listbox widget

setrange <min> <max>

Sets the range of the slider from min to max

direction <from_left | from_right | from_top | from_bottom>

Sets the direction of the shader when it appears on the screen.  It will scroll in from that direction over time

slidertype <integer | float>

Sets the type of the slider to either integral or floating value

fadein <time>

Makes the widget fade in over the specified time

stopsound <soundname>

Plays the sound specified when the widget stops moving

clicksound <soundname>

Plays the sound specified when the widget is clicked

stretch < horizontal | vertical >

Stretch the widget horizontally or vertically across the whole screen (resolution independent )

initdata <data>

Initializes the widget to data (used for sliders)

sliderstep <stepsize>

Sets the stepsize for the slider
